3 – Tabela de Medidas – Ecoblock – Manual

TABELA DE MEDIDAS

COMPRIMENTO MM	LARGURA MM	ESPESSURA MM	PESO DO PERFIL (Kg)

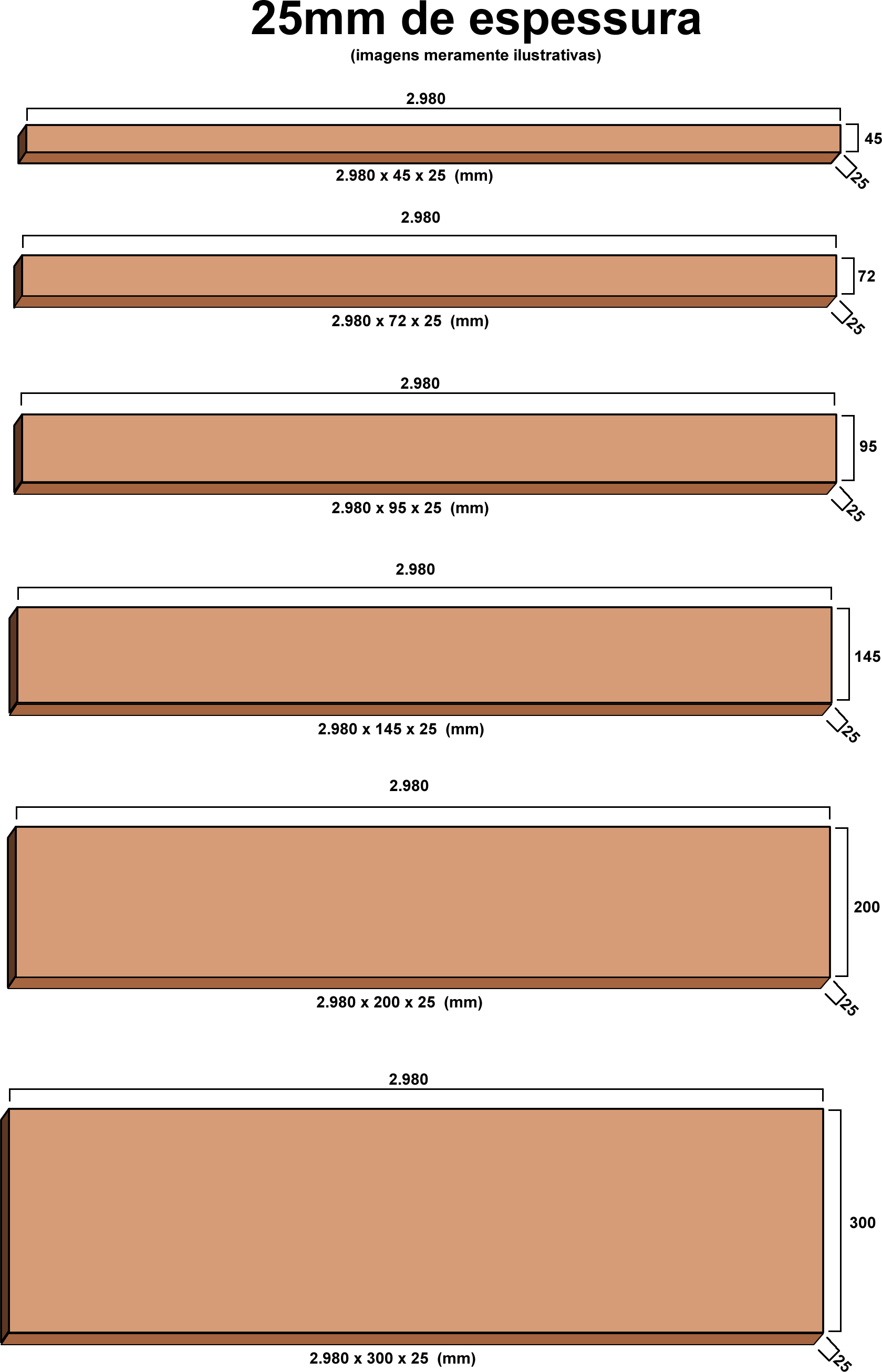

2.980	45	25	3,350
2.980	72	25	5,365
2.980	95	25	7,078
2.980	145	25	10,803
2.980	200	25	14,900
2.980	300	25	22,350

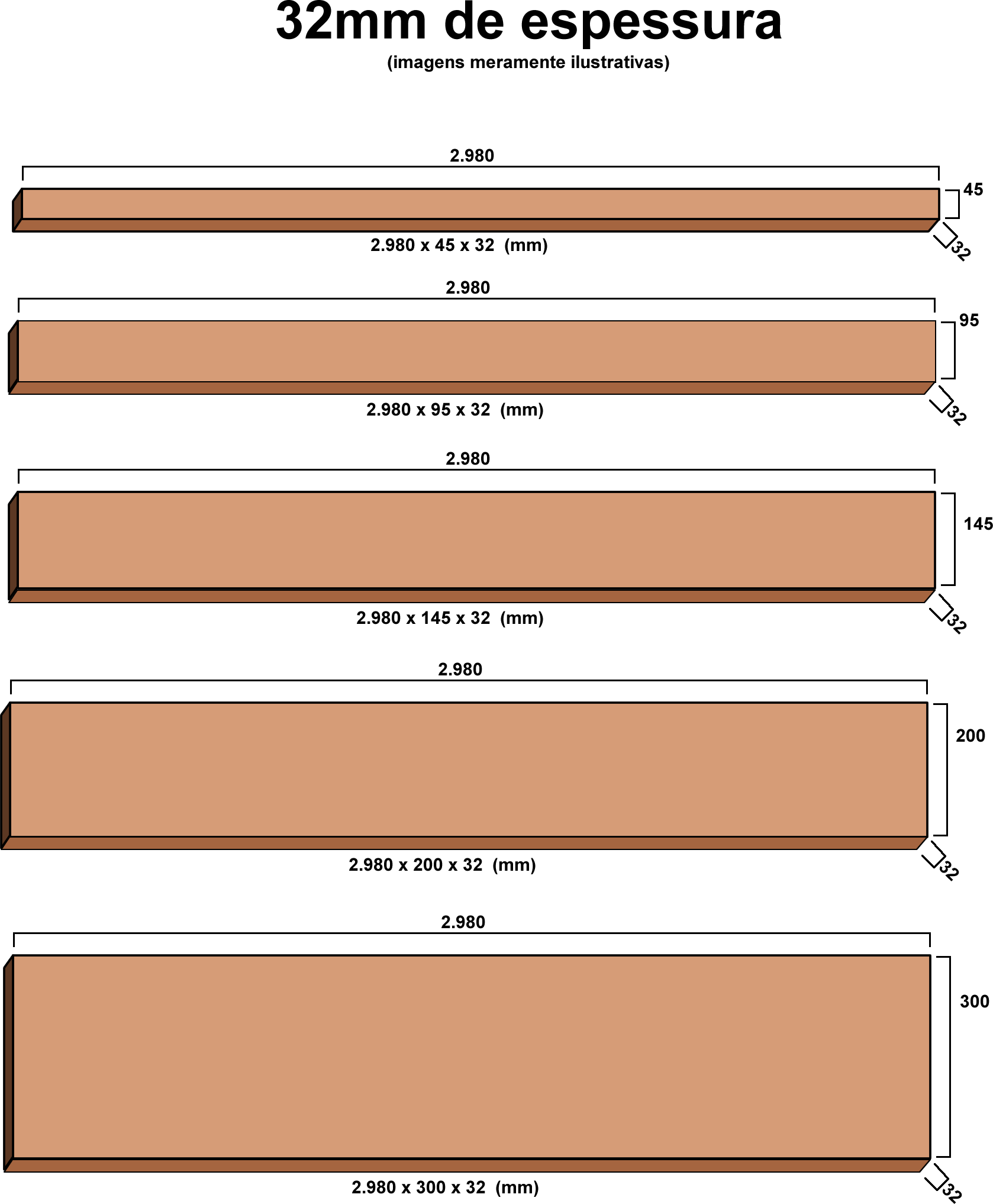

2.980	45	32	4,300
2.980	95	32	9,060
2.980	145	32	13,830
2.980	200	32	19,072
2.980	300	32	28,608

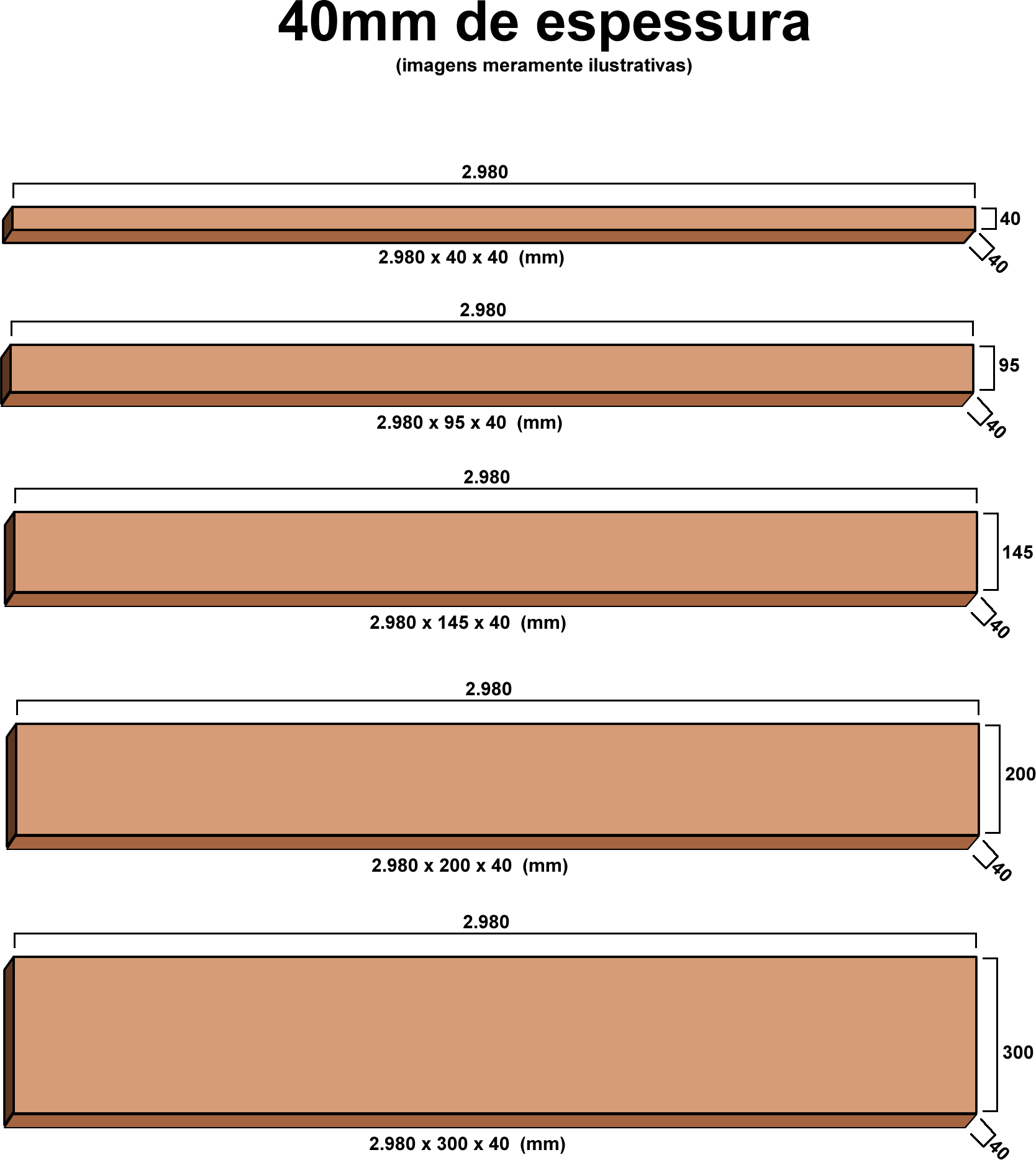

2.980	40	40	4,770
2.980	95	40	11,325
2.980	145	40	17,284
2.980	200	40	23,840
2.980	300	40	35,760

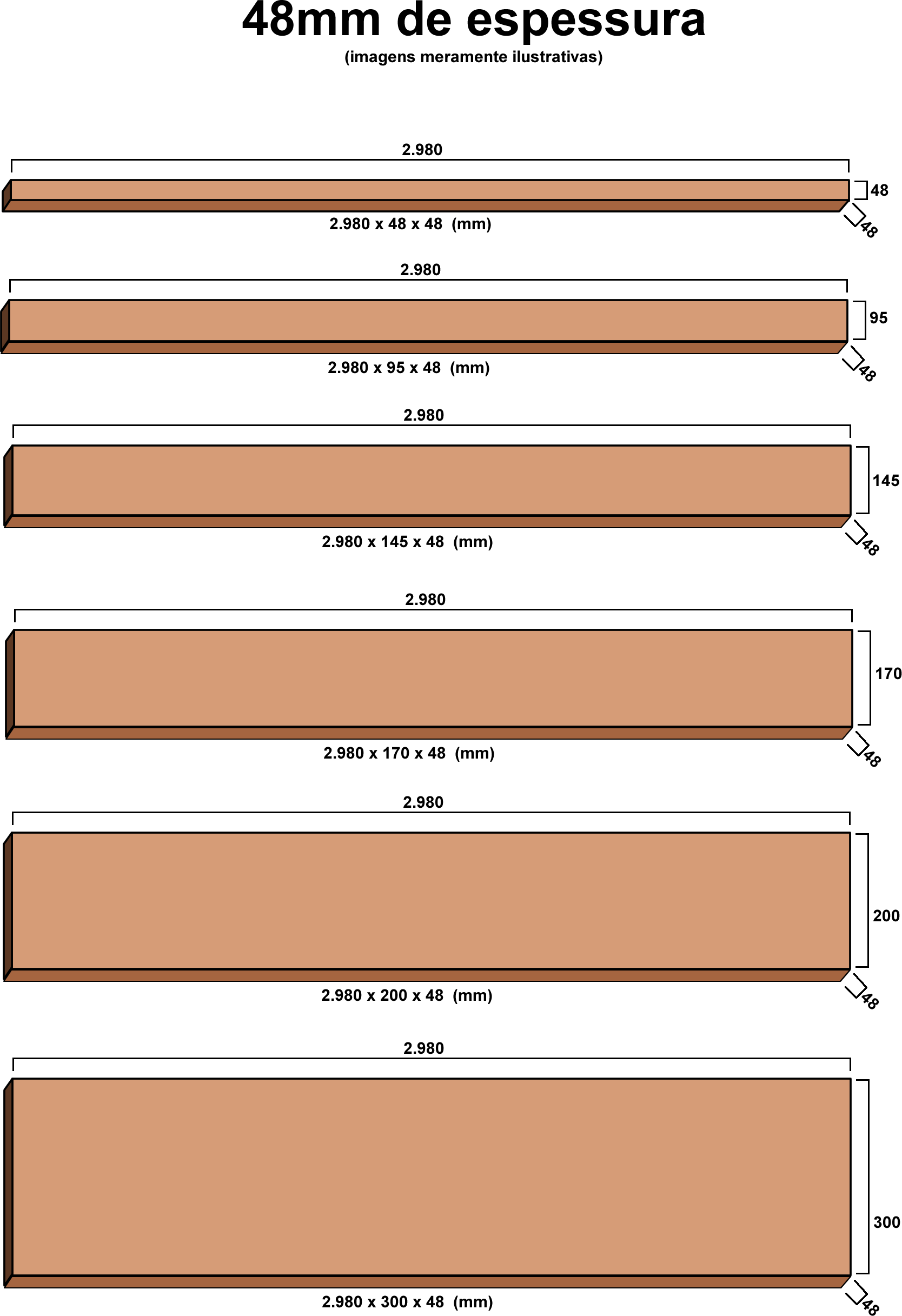

2.980	48	48	6,866
2.980	95	48	13,588
2.980	145	48	20,740
2.980	170	48	24,317
2.980	200	48	28,608
2.980	300	48	42,912

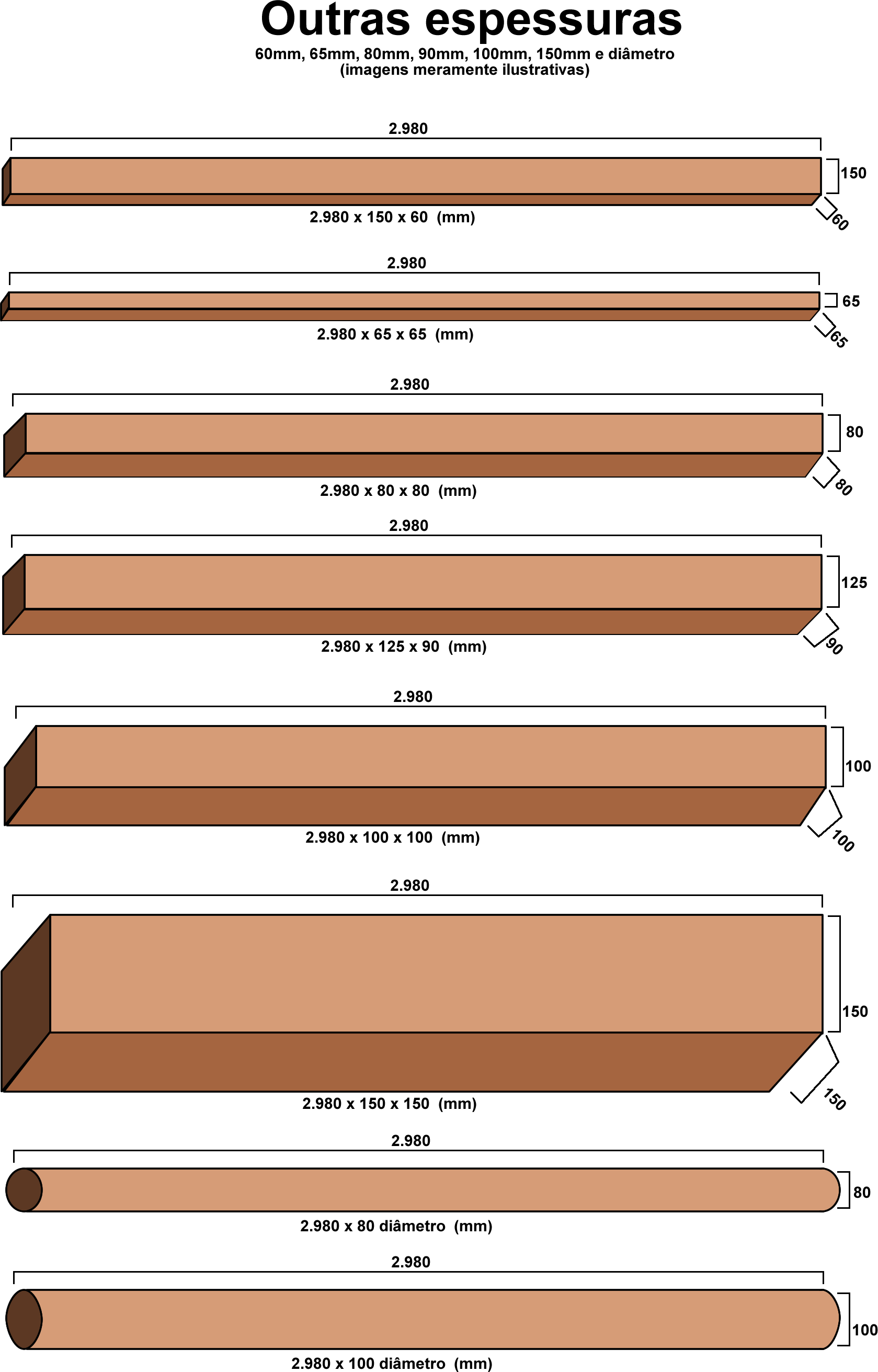

2.980	150	60	26,820
2.980	65	65	12,600
2.980	80	80	19,072
2.980	125	90	33,525
2.980	100	100	29,800
2.980	150	150	67,050
2.980	80	Diâmetro	15,000
2.980	100	Diâmetro	23,500
